K-Fold cross-validation using HARDy

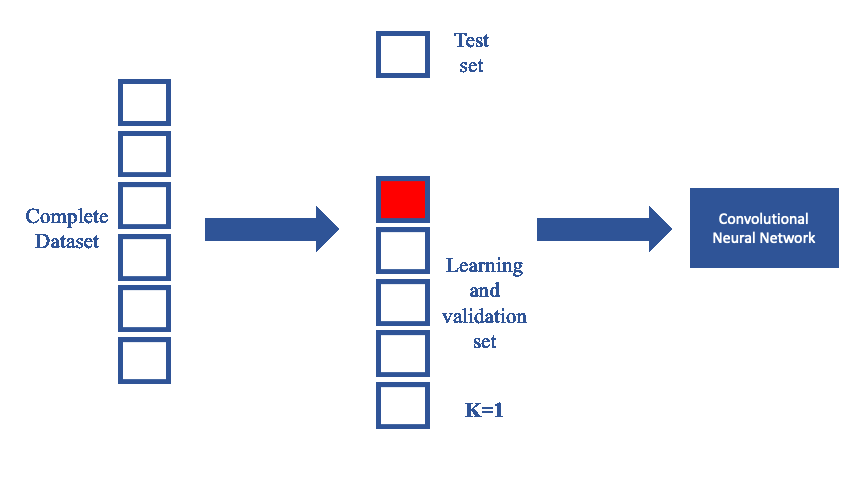

For cross-validation of a Convolutional Neural Network (CNN), HARDy provides user-defined arguments to perform k-fold cross validation. The scheme of data-splitting for k-fold validation is shown in the image below:

For each fold, the data is splitted differently. The red-box shows changing validation set with each k-fold iteration. This enables the model to train on virtually different dataset thus enabling the user to evaluate the model objectively.

To further cross-validate, HARDy after providing average accuracy for k-folds, tests the CNN on the test set which was never seen by the CNN model.

The k-fold cross-validation is available for running on `CNN` only

To utilize k-fold cross-validation in HARDy, following steps are required

Step 1: Defining the path variables

Defining the .csv files datapath

raw_data_path = 'path/to/raw/data/'

Defining the CNN configuration path. This configuration will be validated using k-folds

classifier_config_path = './configuration/forCNN/'

Defining the transformation configuration path

tform_config_path = './configuration/forTransformation/tform_config.yaml'

Step 2: Defining attributes for transformations

scale = 0.2
target_size = (100, 100)
iterator_mode = 'arrays'
classes = ['class1', 'class1, 'class3']
n_threads = 1

The details on setting these parameters are available on the Getting Started webpage

Step 3: Defining attributes for k-fold cross-validation

The following parameters are important in using k-fold cross-validation

k-fold = True             #indicating to use k-fold
k = 5                     #indicating how many folds to use
classifier_mode = 'cnn'   #indicating not to use the hyperparameter tuner

Step 4: Running HARDy

Following script can then be executed to run the k-fold cross-validation

run.hardy_main(raw_data_path, tform_config_path, classifier_config_path, batch_size=64,
scale=0.2, num_test_files_class=750, target_size=(100, 100), iterator_mode='arrays',
classifier='cnn', n_threads=1, classes=['class_1', 'class_2', 'class_3'],
k-fold=True, k=5, project_name='my_project_name')

This will execute and produce an average accuracy for k-fold cross-validation

The run will also produce a report comprising of trained model, model evaluation summary on test set and hyper-parameter space. These reports will be created under raw_data_path/project_name/transformation_name

---
